Heavy Duty 3/4″ to 2″ Inlet Float Valves – HI-FLOW: 158 GPM @ 110 psi – HI TEMP up to 175°F

Part# S5-HD-Series

Price range: $119.00 through $123.00

Easily control water levels using this corrosion and high temperature resistant valve, perfect for use in car washes, cooling towers, storage tanks, high pressure cleaning systems, irrigation applications, cisterns, and more!

  • Suited for hot water applications HI-TEMP:  Up to 175 °
  • HI-PRESSURE:  (up to 150 psi)
  • HI-FLOW:  (up to 158 GPM @ 110 psi, 1 1/2 – 2″ inlet)

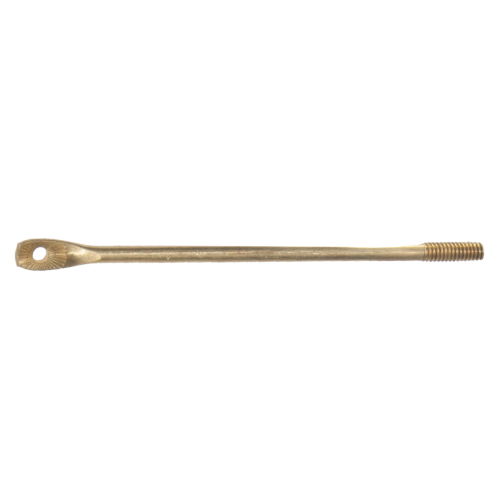

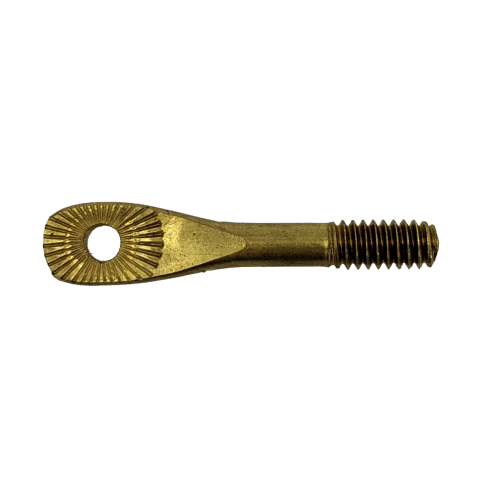

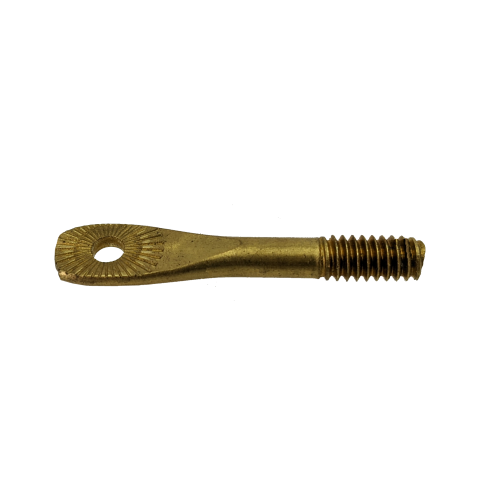

  • 6″ rod included in the kit as well as a  2″ Brass Float Rod for compact installation.  (other lengths available)
  • Start and stop levels can be easily adjusted to provide the desired fluid levels
  • Optimizes the operational time of the pump
  • Valve Seal Access System for quick access to the valve seal
  • Ideal for all makes and models of tanks
  • Slow shutdown minimizes water hammer
  • Float Assembly included

Applications

  • Car Washes, Water Tanks,  Water Towers,  Irrigation Systems,  Animal Drinking,  Spraying Equipment,  Swimming Pools
SKU: S5-HD-Series Categories: , Tags: , , , , , , , , , , , , , , , ,

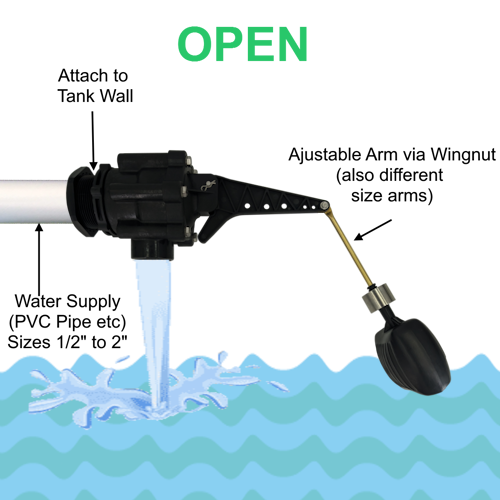

The Heavy Duty S5-Series is ideal for water tanks which are filled by running water or a pressured system controlled by a water pump.  The valve allows for variable water levels adjustable to optimized the starting and stopping of running water or the pump system.

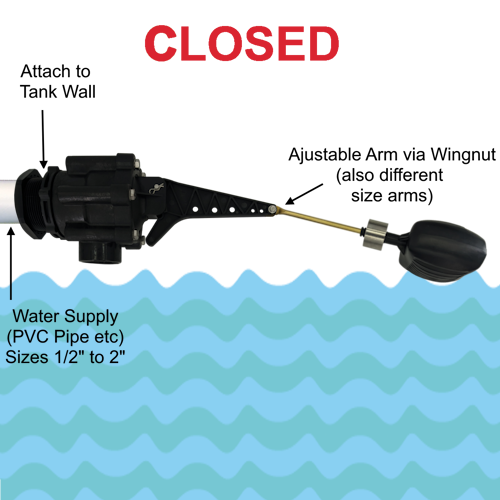

Unlike other valves on the market, the S5-Series lever default position is closed.  The valve provides a counter weight on the stem to maintain water flow until the desired level is reached, at which point the valve provides a positive stop eliminating chatter.

Advantages

In Action

  • High flow, start and stop levels can be easily adjusted to provide the desired fluid levels – Up to 158 GPM @110 psi
  • Optimizes the operational time of the pump
  • Valve Seal Access System for quick access to the valve seal
  • Ideal for all makes and models of tanks
  • Slow shutdown minimizes water hammer
  • Includes compact float design
  • Mounts horizontally or vertically
  • Easily adjust float position without tools
  • The valve mounts at the top-side of the tank.  It fits easily through a thin walled tank or screws into a threaded tank inlet
  • Maximum temperature: 176°F
  • Working Pressure: 15-150PSI
S5-150075
PSI 10 20 30 40 50 60 70 80 90 100 110
Flow Rate (GPM) 34 41 48 55 57 58 66 66 66 66 66
S5-150100
PSI 10 20 30 40 50 60 70 80 90 100 110
Flow Rate (GPM) 38 45 56 68 76 79 83 86 89 93 95
S5-150125
PSI 10 20 30 40 50 60 70 80 90 100 110
Flow Rate (GPM) 38 45 56 68 76 79 83 86 89 93 95
S5-150FC, S5-200FC, & S5-152K
PSI 10 20 30 40 50 60 70 80 90 100 110
Flow Rate (GPM) 41 48 52 71 90 115 136 142 148 151 158
Weight 2.45 lbs
Dimensions 14 × 4 × 4 in
Inlet Size

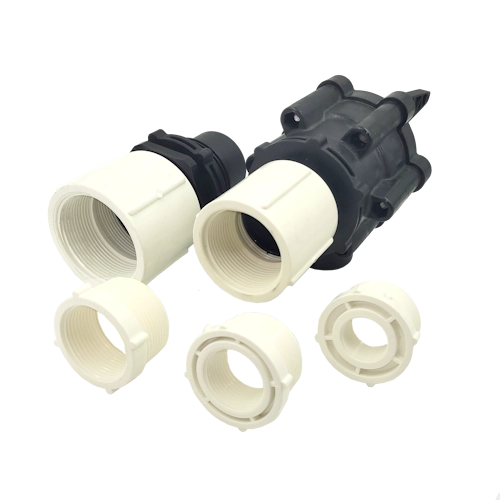

.75" Female or Male NPT Inlet, 1.00" Female or Male NPT Inlet, 1.25" Female or Male NPT Inlet, 1.50" Female or Male NPT Inlet, 2.00" Female or Male NPT Inlet, 1.5" and 2" MNPT Male Inlet Adapters
