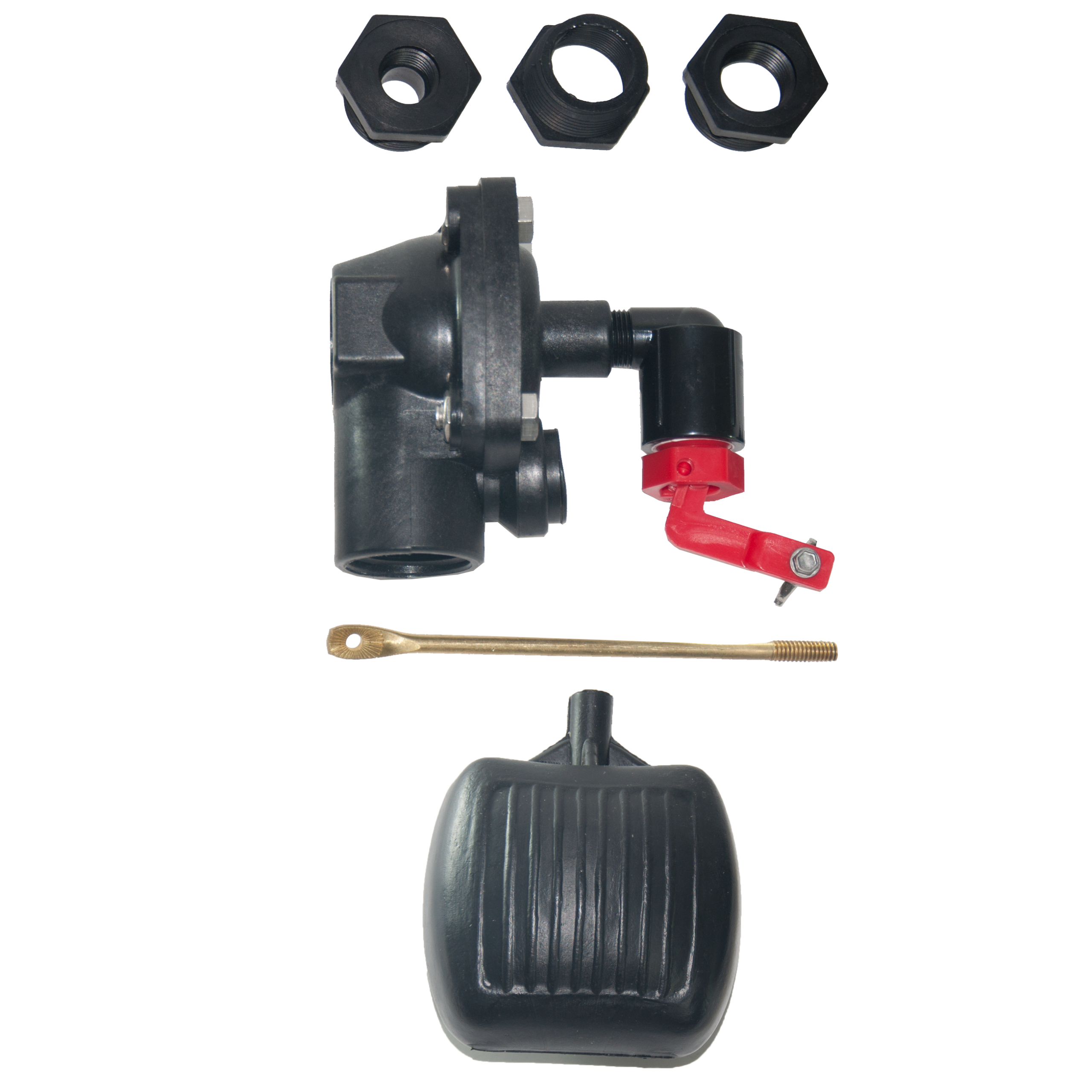

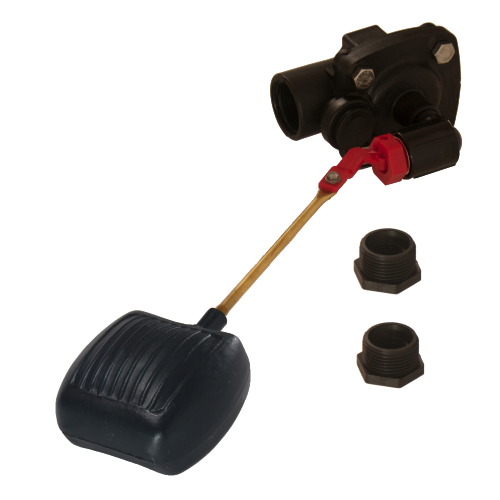

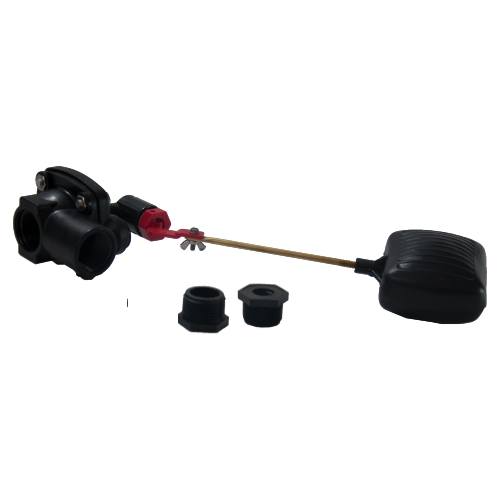

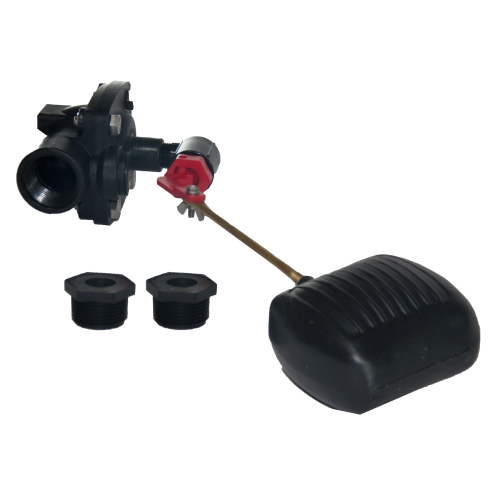

1″ Float Valve with Pilot & 1/2″ and 3/4″ Adapter Bushings (NPT Female Thread)
Part# S2-100P$59.95
Operates independent of the main valve for reduce wear and extended functional life, while operating in 1/8 of the space as a standard mechanical valve of comparable inlet diameter.
- 1″ FPT Inlet and Outlet pipe size
- Used in open or closed (vented) and in-tank or out-of-tank applications
- Works with water pressure. Operating pressure range from 5-110 psi with flow rates to 250 GPM
- Compact Design – a 2 1/2″ float is all that is required to shut off our 1 1/2″ valve. No bulky 8″, 10″ or 12″ floats, or long leverage arms are required.
- Positive Shutoff – Unique design prevents chatter, water hammer and blow by.
- Reduced Wear – Pilot valve operates independent of main valve extending functional life.

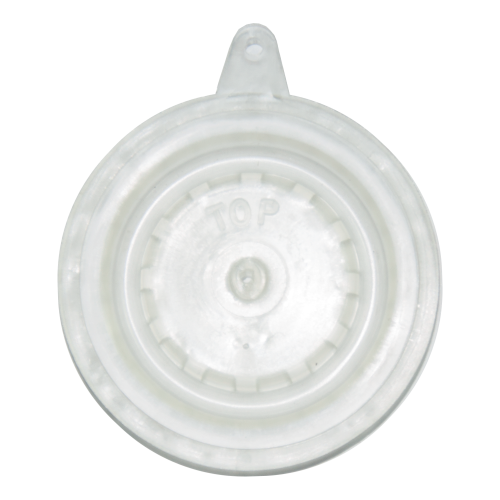

- Replacement diaphragm & pilot valve available
