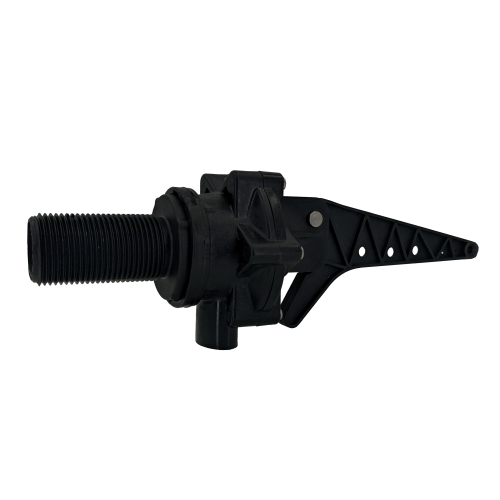

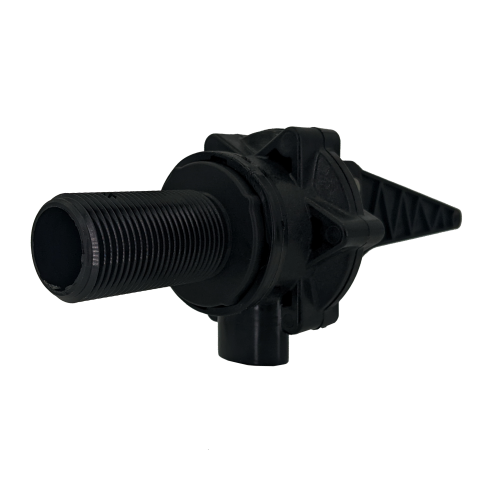

Durable Hi-Temp Hi-Flow Float Valve 1/2" - 1" Inlet

Durable Hi-Temp Hi-Flow Float Valve 1/2" - 1" Inlet - Image 2

Durable Hi-Temp Hi-Flow Float Valve 1/2" - 1" Inlet - Image 3

Durable Hi-Temp Hi-Flow Float Valve 1/2" - 1" Inlet - Image 4

Durable Hi-Temp Hi-Flow Float Valve 1/2" - 1" Inlet - Image 5

Durable Hi-Temp Hi-Flow Float Valve 1/2" - 1" Inlet - Image 6

Durable Hi-Temp Hi-Flow Float Valve 1/2″ – 1″ Inlet

Name: Durable Hi-Temp Hi-Flow Float Valve 1/2" - 1" Inlet
SKU: S5-100 Series
Price: 59.00 USD
Availability: InStock

Part# S5-100 Series

$59.00

On Sale — Limited Supply. Unmatched specs and durability at this price — 175°F and 150 PSI. Regularly $74.95, now $59.95 while quantities last.

Easily control water levels using this hi-flow, hi-temperature corrosion resistant valve, perfect for use in car washes, cooling towers, storage tanks, high pressure cleaning systems, irrigation applications, cisterns, and more!

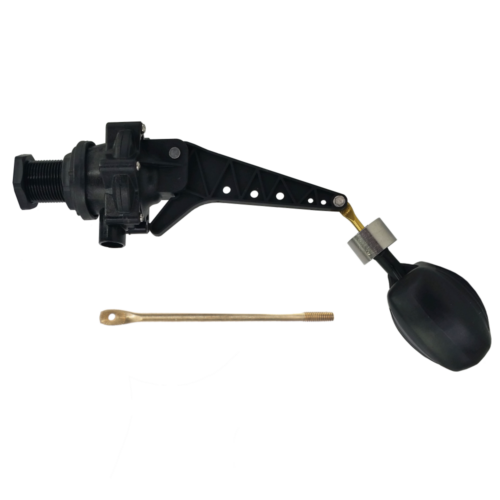

Comes with 2 different float rods, but more are available to customize your installation and application needs.

HI-TEMP: Up to 175 °
HI-PRESSURE: (up to 150 psi)
Compact size using 2″Brass Float Rod with an optional 6″ rod included in the kit (other lengths available)
Start and stop levels can be easily adjusted to provide the desired fluid levels
Optimizes the operational time of the pump
Ideal for all makes and models of tanks
Positive and slow stops eliminates chatter and reduce water hammer
Comes with Female Coupler (FNPT x FNPT)

Applications

On Sale — Limited Supply. Unmatched specs and durability at this price — 175°F and 150 PSI. Regularly $74.95, now $59.95 while quantities last.

Comes with 2 different float rods, but more are available to customize your installation and application needs.

HI-TEMP: Up to 175 °F
HI-PRESSURE: (up to 150 psi)
Compact size using 2″Brass Float Rod with an optional 6″ rod included in the kit (other lengths available)
Start and stop levels can be easily adjusted to provide the desired fluid levels
Optimizes the operational time of the pump
Ideal for all makes and models of tanks
Positive and slow stops eliminates chatter and reduce water hammer
Comes with Female Coupler (FNPT x FNPT)

Applications

Car Washes
Water Tanks & Towers
Irrigation Systems
Animal Drinking Systems
Spraying Equipment
Swimming Pools
Cooling Towers
Cisterns

Inlet Size

Clear

SKU: S5-100 Series Categories: Float Valves, S5 Float Valves Tags: 00860010309506, 00860010309513, 00860010309520, 00860010309537, 00860010309544, 00860010309551, Agriculture Float Valve, Animal Drinking, Float Valve, Hudson, Irrigation, Jobe, Spray Equipment, Swimming Pool, Water Float Valve, Water Tank, Water Tower

Description
Additional information

On Sale — Limited Supply. No other valve on the market matches these temperature and pressure specs and durability at this price point — 175°F rated, 150 PSI, up to 158 GPM. Regularly $74.95, now $59.95 while quantities last. Same great valve, same 2-year warranty.

Unlike other valves on the market, the S5-Series lever default position is closed.

These valves feature a counter weight on the stem that maintains water flow until the desired level is reached, at which point the valve provides a positive stop, eliminating chatter.

High flow: Up to 40 GPM @ 110 PSI
Maximum temperature: 175°F – best value hi-temp valve on the market
Working Pressure: 15-150PSI
Easily adjusted to provide the desired fluid levels
Optimizes the operational time of the pump
Valve Seal Access System for quick access to the valve seal
Ideal for all makes and models of tanks
Slow shutdown minimizes water hammer
Includes compact float design
The valve mounts at the top-side of the tank. It fits easily through a thin walled tank or screws into a threaded tank inlet

For guidance on selecting the right float valve for your application, see this float valve selection guide.

S5-050

PSI	10	20	30	40	50	60	70	80	90	100	110
Flow Rate (GPM)	21	26	28	31	36	39	40	40	40	40	40

S5-075

PSI	10	20	30	40	50	60	70	80	90	100	110
Flow Rate (GPM)	34	41	48	55	57	58	66	66	66	66	66

S5-100

PSI	10	20	30	40	50	60	70	80	90	100	110
Flow Rate (GPM)	38	45	56	68	76	79	83	86	89	93	95

S5-075

PSI	10	20	30	40	50	60	70	80	90	100	110
Flow Rate (GPM)	34	41	48	55	57	58	66	66	66	66	66

S5-100

PSI	10	20	30	40	50	60	70	80	90	100	110
Flow Rate (GPM)	38	45	56	68	76	79	83	86	89	93	95

Installation Guide

Unlike other valves on the market, the S5-Series lever default position is closed. The valve provides a counter weight on the stem to maintain water flow until the desired level is reached, at which point the valve provides a positive stop eliminating chatter.

High flow: Up to 40 GPM @ 110 PSI
Maximum temperature: 176°F – best value hi-temp valve on the market
Working Pressure: 15-150PSI
Start and stop levels can be easily adjusted to provide the desired fluid levels
Optimizes the operational time of the pump
Valve Seal Access System for quick access to the valve seal
Ideal for all makes and models of tanks
Slow shutdown minimizes water hammer
Includes compact float design
Easily adjust float position without tools
The valve mounts at the top-side of the tank. It fits easily through a thin walled tank or screws into a threaded tank inlet
